Brewtools

Sparge manifold for simple spreading of sparge water over the grains. It can also be used as a mash manifold during mashing for a more efficient distribution of wort over the grainbed. Made for Brewtools B150Pro and is attached to the center pipe and follows when the malt pipe is liftet up for sparging. Top and end-plugs made in the Brewtools characteristic blue silicone for easy access for cleaning after use. Diameter: 420mmIncludes:- Manifold- Top plug in silicone- End plugs in silicone

Bracket for mounting the control box for your brewing system on the wall/table or on a VESA-mount arm. Used in combination with the cable extension kit. Features VESA75 and VESA100 with M4 threads. Made in powder coated stainless steel. Fits Brewtools B40/B80/B150.

5-pack gaskets for 34mm Tri-clamps.

Tri Clamp for connecting two TC 4" fittings. Used to connect accessories to our steam hats.Gasket is sold separately.

Thermowell for sensors. Triclamp coupling 1.5 ". Inside diameter: 7mm Length: 160mm.

Sampling crane to take samples from the tank during the fermentation process. Can also be used at start-up together with B40 / 80/150 Pro to take samples of the wort during the brewing day. Triclamp 34mm.

Brewtools HopDrop Kit 4" for dryhopping and adding other ingredients to a pressurized fermenter without oxygen. Fits F100/F150/F200/F300 and other 4".Included in the box:- Butterfly-valve, TC 4"- TC Adapter, 4" til 34mm- TC Pipe, 4", L=200mm - Tri Clamp, 4" (2 pcs)- Tri Clamp, 34mm (3 pcs)- TC34mm Manual PRV- TC34mm Ball Lock connector, Gas- TC Tee, 34mm, L=60mm- TC Gasket, 4", (3 pcs)- TC Gasket, 34mm DN20, 5-pack

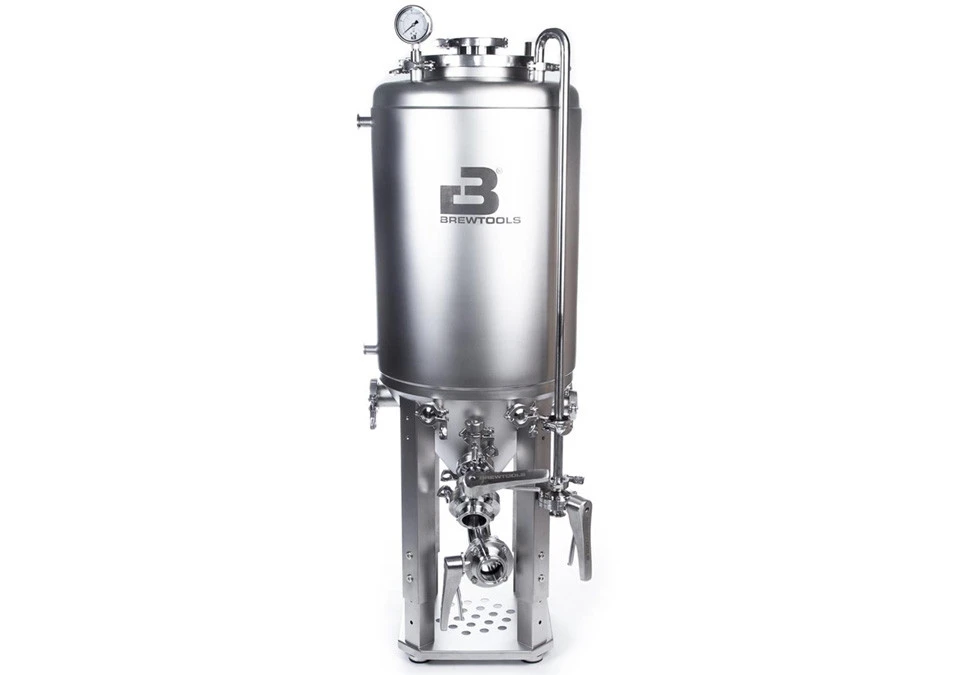

Brewtools MiniUni 40L The MiniUni™ tanks are a range of high quality, flexible yeast tanks at a very reasonable price. They can be used for fermentation, storage and serving of beer but also other uses such as water heating, storage of cleaning agents, HERMS installation, etc. MiniUni™ can be placed in the included base but also hung on the wall with the included wall bracket. By using a pressure fermentation kit (optional equipment) you can ferment under pressure and carbonation in the tank.All MiniUni™ are approved for 2 bar (30 psi) and will last a lifetime!! Key Features:PureBlast™ surface inside and out which eliminates the use of wax and polishing agents in manufacturing. The tank also does not need to be passivated.Easy cleaning with 4" Tri-Clamp opening in the top and a 2" Tri-Clamp in the bottomPressure approved up to 2 bar (30 psi)Wall bracket is included Designed and produced with quality in focus. Tested by independent party to meet PED 2014/68/EUSpecification:Pack size: 34 (w) x 34(d) x 92 (h) cmWeight without packaging: 11.2 kgWeight with packaging: 12 kgTank diameter (inside): Ø28 cmMax. recommended volume: 40 litersVolume, cone: 1.7 litersMaterial: 1.5mm stainless steel (SS304)Maximum pressure: 2.0 bar / 30 PSI< strong>This comes with:MiniUni™ TankBase with silicone gasketWall mount and baseSafety lock for wall mountComposite TC adapter 4" to 34mmIce lock, 3-piece with holderTri-Clamp 4"Tri-Clamp 2"Tri-Clamp gaskets

Brewtools MiniUni 50L The MiniUni™ tanks are a range of high quality, flexible yeast tanks at a very reasonable price. They can be used for fermentation, storage and serving of beer but also other uses such as water heating, storage of cleaning agents, HERMS installation, etc. MiniUni™ can be placed in the included base but also hung on the wall with the included wall bracket. By using a pressure fermentation kit (optional equipment) you can ferment under pressure and carbonation in the tank.All MiniUni™ are approved for 2 bar (30 psi) and will last a lifetime!! Key Features:PureBlast™ surface inside and out which eliminates the use of wax and polishing agents in manufacturing. The tank also does not need to be passivated.Easy cleaning with 4" Tri-Clamp opening in the top and a 2" Tri-Clamp in the bottomPressure approved up to 2 bar (30 psi)Wall bracket is included Designed and produced with quality in focus. Tested by independent party to meet PED 2014/68/EU Specification:Pack size: 34 (w) x 34(d) x 108.5 ( h) cmWeight without packaging: 12.85 KgWeight with packaging: 14.8 KgTank diameter (inside): Ø28 cmMax. recommended volume: 10 litersVolume, cone: 1.7 litersMaterial: 1.5mm stainless steel (SS304)Maximum pressure: 2.0 bar / 30 PSIThis comes with: MiniUni™ TankBase with silicone gasketWall mount and baseSafety lock for wall mountComposite TC adapter 4" to 34mmIce lock, 3-piece with holderTri-Clamp 4"Tri-Clamp 2"Tri-Clamp gaskets

Stainless steel wall bracket for 3x MiniUni in all sizes. 5 double holes with 150mm spacing makes it easy to install in wall beams.

TC34mm elbow 45 degrees.

Sight glass with 34 mm TC connection. The sight glass allows you to see the color of the wort during circulation. Also suitable for oxygenation to see the flow of oxygen. Usually mounted between a 3-way valve and the countercurrent cooler.

Brewtools power cable 10m. The power cable fits B40pro, B80pro and B150pro. Cable: Rubber, H07RN standard (3x2.5mm2). Contact: CEE 7/7 (16A).

Brewtools butterfly valves are developed for use with Brewtools Unitanks for the best possible sanitary properties and ease of cleaning. Made with the highest possible quality of steel and EPDM.

Brewtools butterfly valves are developed for use with Brewtools Unitanks for the best possible sanitary properties and ease of cleaning. Made with the highest possible quality of steel and EPDM.

Flexible insulation jacket for your Brewtools B150pro. Zippers make it easy to take on and off the brewer. It insulates and retains heat better so you use less energy to heat the vessel.· Black· 5 mm thick neoprene· White logo

Brewtools Trubinator S can be used in Brewtools B40 brewing system. During the whirlpool, hops and other particles will collect in the middle of the filter, making it possible to pump out clearer wort to your fermenter.A single wingnut and bolt holds the filter in place, so it's easy to disassemble for cleaning.Diameter: 320mmHeight: 90mmStandard filter: R2x5

Sparge manifold for simple spreading of sparge water over the grains. It can also be used as a mash manifold during mashing for a more efficient distribution of wort over the grainbed. Made for Brewtools B40Pro and is attached to the center pipe and follows when the malt pipe is liftet up for sparging. Top and end-plugs made in the Brewtools characteristic blue silicone for easy access for cleaning after use. Diameter: 260mmIncludes:- Manifold- Top plug in silicone- End plugs in silicone

Counterflow chiller specially designed for all Brewtool models. With this countercurrent cooler, you can ensure that you get a quick and efficient cooling of the wort without giving in to the Whirlpool effect. Five meter wound stainless steel pipes with welded 34 mm Tri-Clamp couplings. Produced from 304 stainless steel. 4 34 mm Tri-Clamp couplings, two for wort and two for water.

Cover plate to cover the controller hole when relocated. Black, powder coated stainless steel. 4x bolts and nuts included. Fits Brewtools B40/B80/B150.

Brewtools filters are installed directly on the butterfly valve on the yeast tank. The filter can be used for other purposes as well and can be adapted with most accessories and adapters. If the filter clogs, you just need to remove a Tri Clamp and rinse it off with disinfectant without having to disassemble all parts. USE: Install the filter after disinfection. Install the filter kit on the butterfly valve Blow through with Co2 a couple of times Open the valve and release the air with PRV Connect the ball coupling to your drum If the filter is to be used with liquid above 60 degrees, we recommend that you replace the Poly TC tube and the filter holder with the stainless steel options Filter holder | Stainless | Brewtools and Pipes | 20 cm | 2 "TC | Brewtools or use our stainless steel filter In-line Sanitary Filter | 1.5" TC. You can easily put several filters one after the other if you want a coarse filter first and a finer one afterwards. < br /> INCLUDED PARTS: Ball lock adapter, 2 "with M16 threads 3 pcs Filters in stainless steel 30mm, 300, 600 and 1000 microns Filter holder made of food grade Nylon (PA), M16 TC 2 "to 34 mm T-cross TC34 mm manual PRV 3 pcs 2" Tri Clamp 1 pc 34 mm Tri Clamp 2 pcs TC gasket with filter groove (blue) 1 pc 2 "Poly TC pipe, 200 mm 2" and 34 mm gaskets

The overflow pipe kit is a solution for the malt pipe in our brewing system. It makes it simple to avoid dry heating elements and grains in your wort.The system is fastened to your filter (Punch out the pre-cut hole in the laser cut filter or use a 25mm hole punch for the standard filters).It's adjustable from about half batch to a full malt pipe.Note: We never recommend to run a high power brewing system without supervision. This safety solution does not guarantee avoiding burnt heating elements due to dry running.Included in the package:- Overflow pipe with M24 threads, 180mm- Pipe kit, 200, 300 and 400mm)- Silicone parts- Filter, laser cut- M24 nut- M24 hole cover

Thermowell for sensors. TC 34mm. Inside diameter: 7mm Length: 90mm

Thermowell for temperature sensors. TC 34mm.Inside diameter: 7mmLength: 160mm

Thermowell / diving well for sensors. Triclamp coupling 1.5 ". Inside diameter: 7mm Length: 90mm

Brewtools HopDrop Kit 3" for dryhopping and adding other ingredients to a pressurized fermenter without oxygen. Fits F40/F80 and other 3".Included in the box:- Butterfly-valve, TC 3"- TC Adapter, 3" to 34mm- TC Pipe, 3", L=200mm - Tri Clamp, 3" (2 pcs)- Tri Clamp, 34mm (3 pcs)- TC34mm Manual PRV- TC34mm Ball Lock connector, Gas- TC Tee, 34mm, L=60mm- TC Gasket, 3", (3 pcs)- TC Gasket, 34mm DN20, 5-pack

Spiral that can be mounted on the outside of the sampling faucet from Brewtools. Reduces foam to a minimum when samples are taken from a fermentation tank under pressure.

Food-approved gasket for 34 mm Tri-Clamp. Produced in high quality silicone. Fits Brewtools B40Pro & B80Pro.

Sight glass with 2 "(64MM) Triclamp couplings. Sight glass with 2" (64MM) Triclamp couplings. Length: 98mm Inside diameter: 47.8mm

Oxygen air spiral with 1/2 "NPT threads. Used to aerate the wort when you drop it into a yeast tank / fermentation bucket. Made of 316 stainless steel.

Brewtool's weldless flanges are used to expand your system without limitations. Designed and manufactured to minimize visible threads for easier cleaning. (NOTE gasket sold separately)We recommend hole puncher to make perfect holes for the weld-free flanges.

2 pcs silicone gaskets for Weldless Fitting | TC 34 mm | Brewtools
