Kegland Icemaster G20 Glycol Chiller

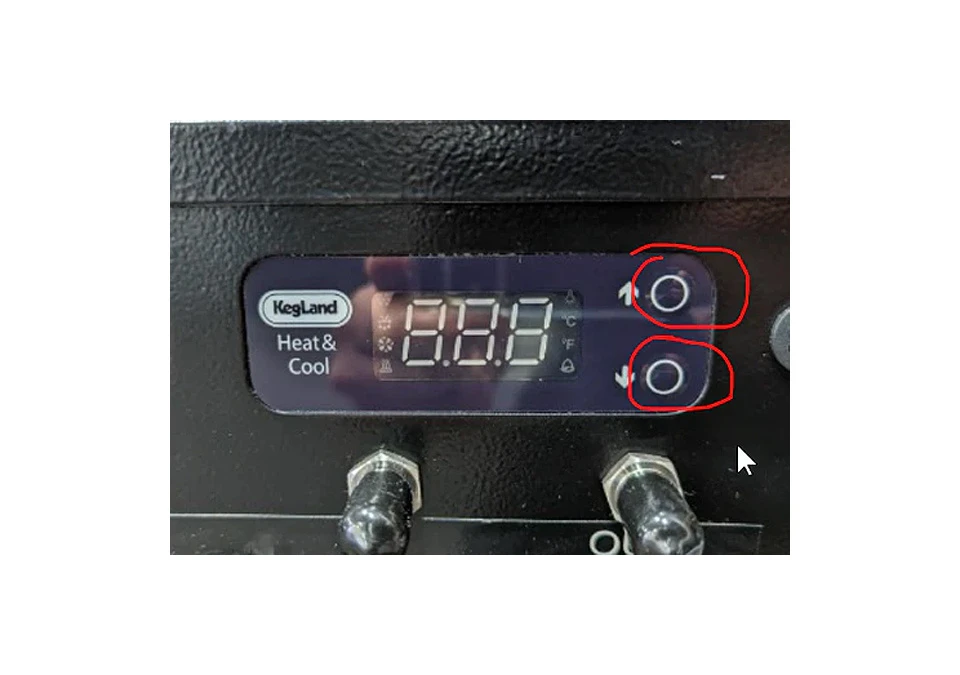

The Icemaster G20 Glycol Chiller is a perfect solution for precise temperature control. With powerful cooling, dual independent pumps, and a compact design, it’s perfect for home brewers and small-scale breweries. From chilling wort to maintaining fermentation temperatures and crash cooling, this chiller ensures consistency and quality in every batch. It can also control heating devices using the onboard controller with some modification.

See videos down the page.

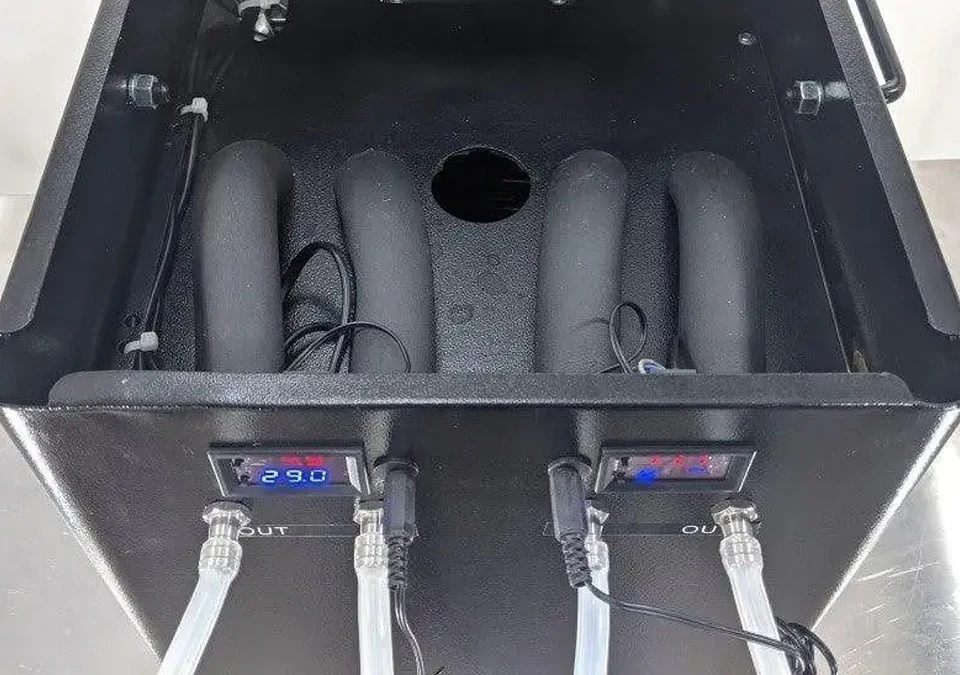

- Dual Temperature Control: Independently chill two fermenters with integrated pumps and precise digital controllers.
- Efficient Cooling Power: 500-watt compressor and R600a refrigerant deliver reliable performance with low energy use.
- Compact Design: Small footprint and durable build fit seamlessly into home or small brewery setups.
- Large Glycol Capacity: 16.42-litre tank supports effective cooling for wort chilling, crash cooling and fermentation.
- Precise Temperature Control: Maintain exact fermentation temperatures for perfect brewing results.

Specifications
Refrigerant: R600a (Isobutane)
Cooling Power: 500 watts (0.67 HP)
Power Consumption: 155 watts
Tank Capacity: 16.42 litres
Maximum Head (Per Pump): 5 metres
Maximum Flow (Per Pump): 600 litres per hour

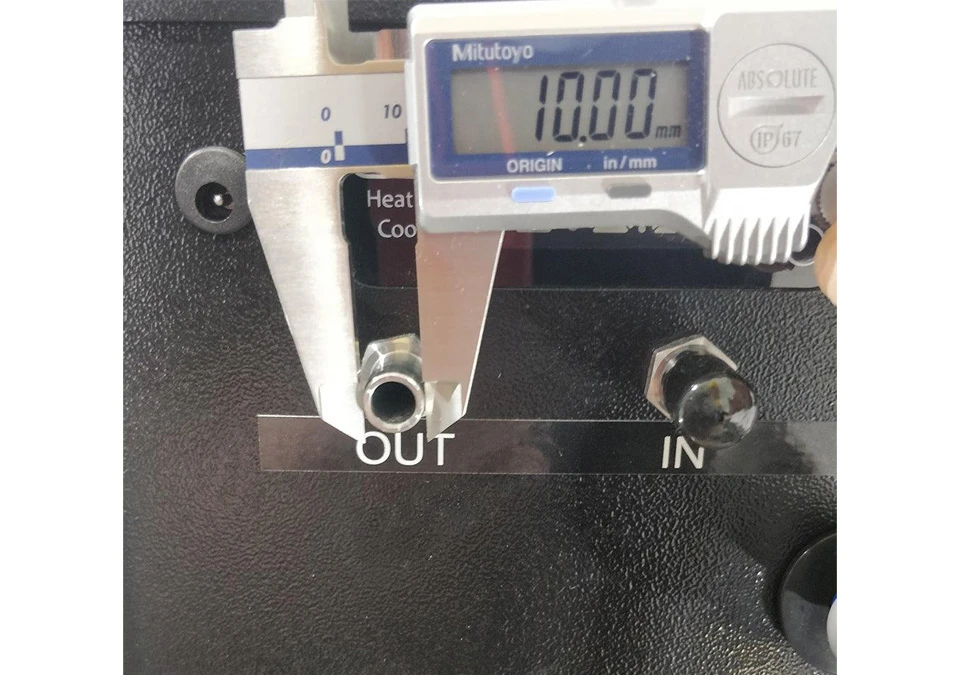

Output Barb Size: Compatible with 10 mm inner diameter tubing (ca 3/8")
Dimensions: 510 mm x 300 mm x 460 mm (L x W x H)
Weight: 25 kg

PRODUCT MANUAL
Click here to open

This glycol chiller features 500 watts (0.67 HP) of cooling power, rated at an ambient temperature of 22°C, ensuring reliable operation even in warmer conditions. It is powerful enough to chill well-insulated fermenters up to 200L in size or multiple smaller fermenters.
Using environmentally friendly R600a isobutane refrigerant, the Icemaster G20 Glycol Chiller offers exceptional cooling efficiency while maintaining eco-conscious standards.

Equipped with a 16.42-litre tank, the chiller works optimally with a glycol-water mixture (20-30% glycol concentration) to achieve a freezing point of approximately -8°C. This ensures the perfect balance of heat transfer efficiency and freeze protection, making the glycol chiller ideal for a wide range of brewing needs, from chilling wort to maintaining fermentation temperatures.
